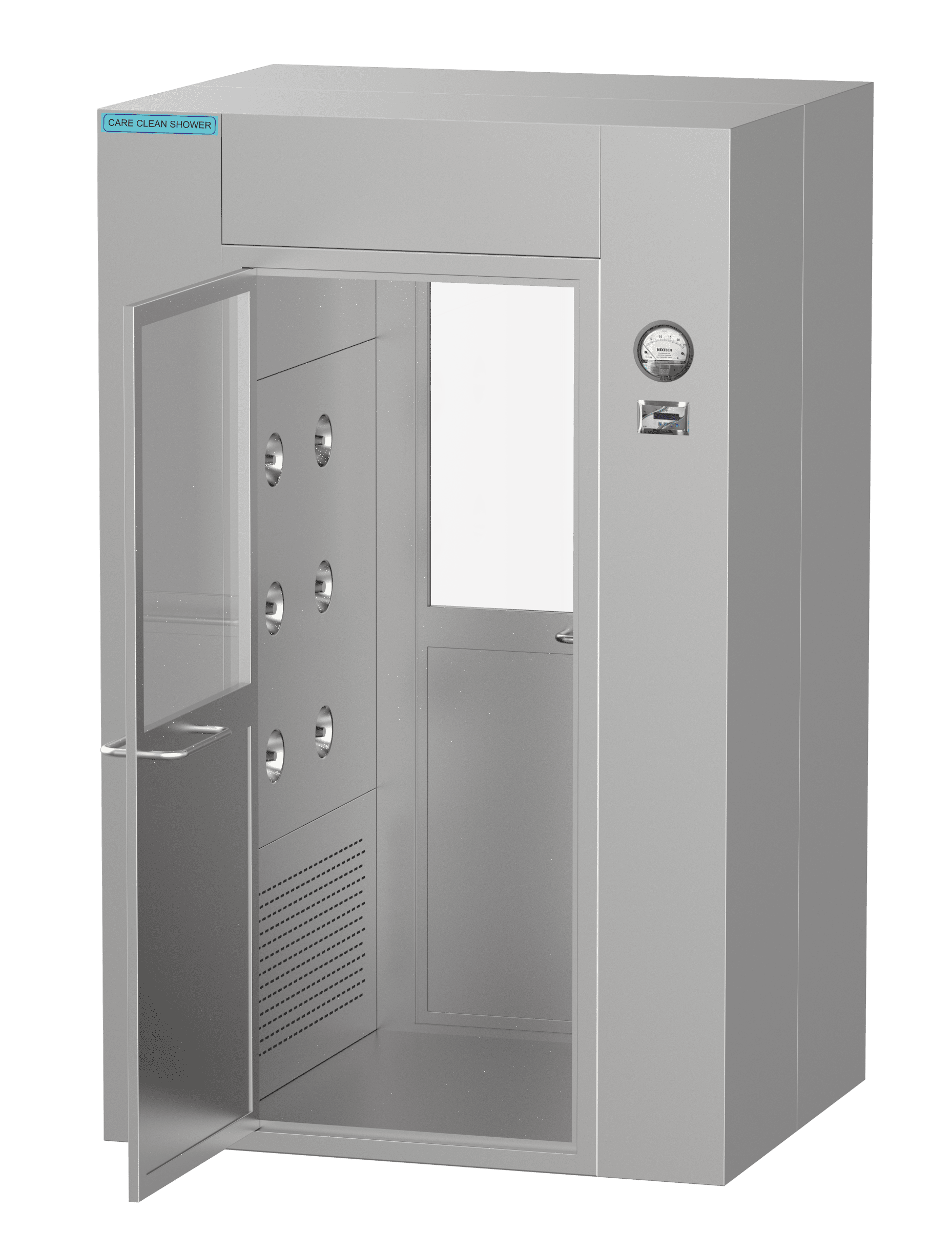

Air shower is a two doors walk-through dust removal system, which is fitted prior to cleanroom entrance. The purpose of setting up air shower system is to control the risk of spreading contaminants in the cleanroom environment by removing particulate matter on the personnel by throwing class 100 airflow. The air shower machine throws high velocity HEPA filtered air through jet nozzles which removes particulate matter (includes solid and liquid particles suspend in air and some of them are hazardous in nature). The contaminated air is again filtered and re-circulated. With-in seconds, the person entering into air shower comes out entirely cleans i.e. free from harmful dust. Electronics and Pharmaceutical productions and animal breeding laboratories are some of areas where air showers are extensively used.
We are V-Mac Enginners manufacturer in India. We have in house facility of design, construction and installation of air shower entry systems for laboratories, clean rooms and manufacturing areas etc. These systems are carefully constructed at our factory, tested at various parameters then dispatched to the client’s site. Our air shower cabinets are designed with corrosion resistant materials (Stainless steel or powder coated MS), fitted with easy to use controls and safety arrangements; filters are easily replaceable whenever needed.
Our air shower entry systems are custom designed and constructed as per requirements of the customers and sold at industry leading price in India.
NO. OF PERSONS PER CYCLE
Standard models are made only for 1 person per cycle. To meet the needs of large number of workers, we can also design air showers with 2, 3 and 4 persons per cycles. They can also be fitted in series and parallel to meet demand of large number of workers.
EXIT TYPE
Our air showers are available of throughout type entry-exit, L type entry-exit and one-way entry and two way exit type.
CONSTRUCTION
Made of only corrosion resistant materials; we use either high grade stainless steel anti-microbial properties or powder coated MS for construction.
DOORS
Two doors are fitted in a system, one at entrance and one at exit. Doors are also made of stainless steel or powder coated MS. Handles and hydraulic door closers are fitted for easy access of door. Electromagnetic interlocking allows opening of single at one time; thus, prevents unwanted contamination inside the machine. There is also emergency switch; by pressing it, both doors open immediately.
BLOWER
Properly balanced motor blower of standard make, fitted with suspension system for noise level reduction.
FLOORING
Flooring or platform is made of either Stainless steel or Aluminum with detachable anti-slip PVC mat or equivalent material.
FITTINGS
Over all fittings such as handles, hinges and wires etc. are of any reputed brand and ISI marked.
INSTALLATION
Our engineering team visits your site and installs the machine properly. Demonstration and training is provided to all relevant staff.
Submit your Inquiry
Get Best Quotation in 30 Minutes!
Contents
Technical Specifications
| Parameter | Specification |
| Air Flow | Cross Flow (Recirculated) |
| Air Shower Mode | Automatic and Manual |
| Shower Time | 0-99s Adjustable |
| Air Velocity | 18 to 22 m/s |
| Material Thickness | 1.2 mm |
| Surface Finish | Matte Finish No. 4 |
| Material Grade | SS 304 / SS 316 / SS 316L / In Combination |
| Construction | Double Skin Body Construction, Recirculatory Plenum on Both Sides |
| Internal Coving | Pencil Coving in Internal Working Area for Easy Cleaning |
| HEPA Filter | 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply Minipleat HEPA Filter |
| Pre-Filter | 5 Micron, EU5 grade with Efficiency 95% – Washable (For Fresh Air & Recirculation) |
| Motor Blower | Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Motor Blower |
| Magnehelic Gauge | 0 to 25 MM, To measure differential pressure across HEPA Filter |
| Speed Variable | To adjust the speed of Motor Blower and maintain the required velocity. |
| Display | Two Line Digital Display with ON/OFF Buttons with LED Indication |
| Controller | Electromagnetic Door Interlocking (Allows to open one door at a time) |
| LED Light | Diffused Fluorescent Lighting to provide an intensity of 300 LUX |
| UV Light | 8W-11W |
| Hour Meter | UV Burning Hour Meter (Inbuilt in Controller) |
| Alarm System | Door Open / Close Delay Audio Visual Alarm |
| System Protection | Password Protected System |
| Door Type | SS Sandwich Door with View Panel |
| View Panel | Double Side 4 mm Toughened Glass |
| Door Handle | SS 304 |
| Door Hinges | SS 304 |
| DOP/PAO Test Port | SS 304 (For HEPA Filter Testing) |
| Atmospheric Nozzle | SS 304 |
| Noise Level | Less than 65 DB on scale |
| Power Supply | 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase) |
| Documentation | DQ, IQ and OQ Documents along with all Necessary Test Certificates |
Standard Size of Air Shower
| Model Number | Internal Size in MM (W X D X H) |
Internal Size in Feet (W X D X H) |
| AS-1.0 | 750 X 900 X 1950 mm | 2.5 X 3 X 6.5 Feet |
| AS-2.0 | 750 X 1200 X 1950 mm | 2.5 X 4 X 6.5 Feet |
| AS-3.0 | 900 X 900 X 1950 mm | 3 X 6 X 6.5 Feet |
| AS-4.0 | 900 X 1800 X 1950 mm | 3 X 6 X 6.5 Feet |
| *We also manufacture Air Shower size as per customer’s requirement | ||
Warranty and Service Support
We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.
Key Features and Specifications
- Design according to WHO, GMP Guidelines ISO 14644-3:2018 [IEST-RP-CC001.3] Compliance
- Electromagnetic Door Interlocking System with Process Lock Timer (Inbuilt)
- 0.3 Micron HEPA Filter with 99.999% Efficiency down to 0.3 Micron [99.995% @ 0.3 MPPS] with Make AAF (American Air Filter).
- 5 Micron Pre Filter with 90% Efficiency down to 5 Micron.
- Centrifugal Forward Curved / Backward Curved Motor blower with speed variable.
- Digital or Analog differential pressure gauge with range 0 to 25 mm of WC.
- Advanced airtight Sturdy Built Doubled Skin Body with No Sharp Edges
- Pencil Coving for Internal Working Area for Easy Cleaning
- Fluorescent Illumination LED Light and UV Light for Disinfection with UV Hour Meter (Inbuilt)
- Door Open / Close Delay Alarm (Inbuilt)
- 30 MM Double Skin Doors with View Panel 5 MM Toughened Glass as View Panel
Optional Features & Accessories
- Flame Proof Design & Construction
- Three Way Air Shower
- L Type Construction
- UV Hour Meter (External)
- Digital Differential Pressure Gauge with Alarm Hour Meter
- Extra UV Light and Fluorescent LED Light
- Spare HEPA Filters, Pre and Fine Filters
- eFRM / PTFE Media HEPA Filter for Velocity at working height as per latest guidelines.
- EC Series Backward curved motor blower for Energy efficient solution.
Validation of Air Shower
- Velocity Measurement [90 ± 20 FPM at 150 mm From HEPA Filter Face, (0.45 ± 0.05 m/s)]
- HEPA Filter Leak Test / Integrity Test
- Particle Count Test [As per Class 100 / ISO 5]
- Air Flow Pattern Test [Smoke Study]
- Recovery Test
Documentation
- Design Qualification
- Installation Qualification
- Operational Qualification
Certificates
- M.O.C. Certificate
- Test Certificate for Controller
- HEPA Filter Test Certificate
- Motor Blower Test Certificate
- Pre Filter and Fine Filter Test Certificate
- Differential Pressure Gauge Calibration Test Certificate
- Microcontroller with Digital Display Test Certificate
Areas of Application
- Pharmaceutical Industries
- Hospitals and Medial
- Microbiology Laboratories
- Chemical Research Laboratories
- Food Processing Industries
- Electronics Industries
