Mobile LAF Trolley

Care Equipments - Clean Room Equipments Manufacturer

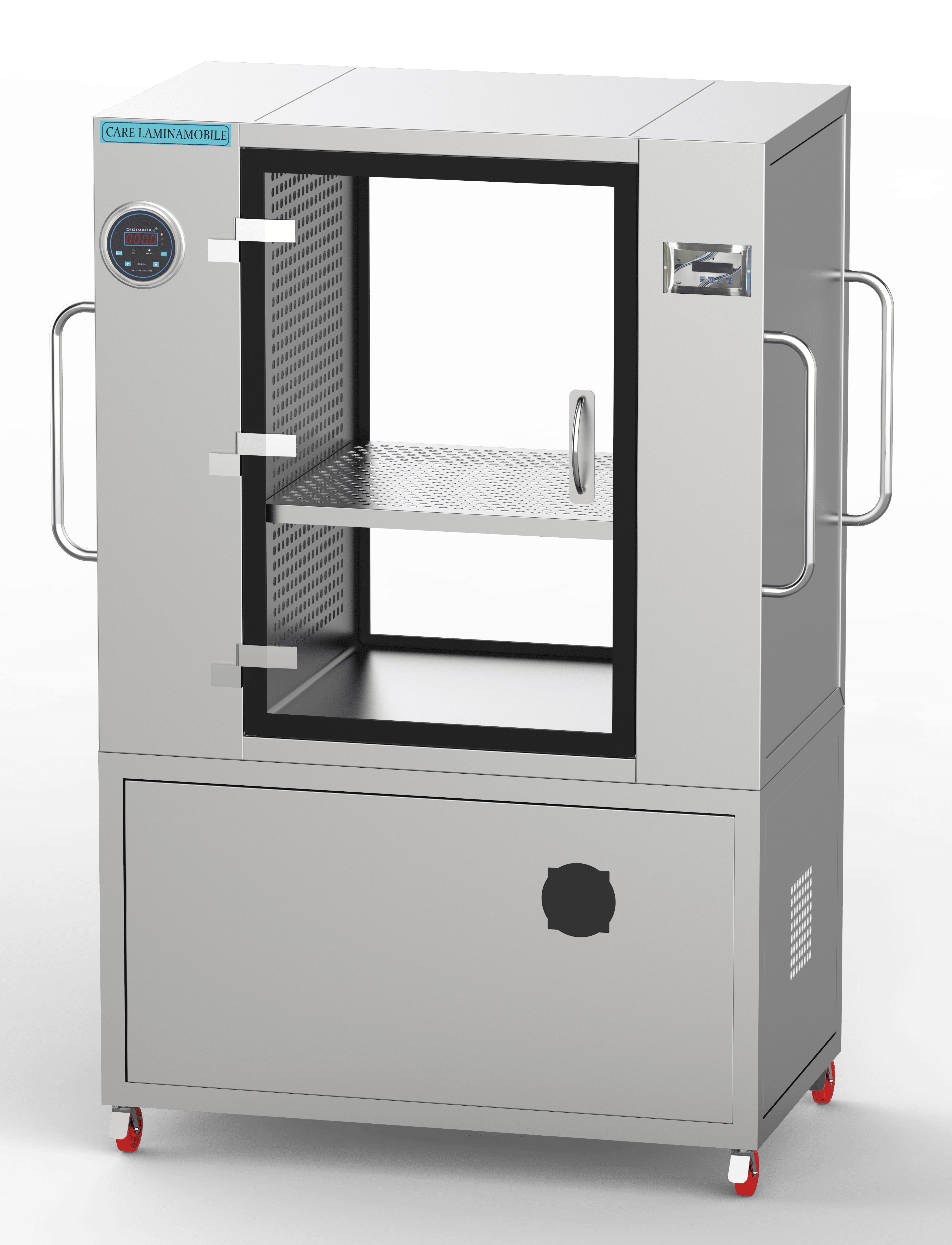

Care Equipment Mobile Trolley (Mobile Laminar Airflow Unit) is designed for transporting sterile products like Rubber Stopper, cap seals, Sterile garments, Vials, and Ampoules under ISO Class 5/Class 100 particle-free work area for storing sterile products to meet Pharma needs while making a positive contribution to maintaining the cleanliness of your controlled cleanroom environment.

The work area is continuously supplied with positive pressure HEPA filtered recirculated vertical or horizontal air flow. Our range of mobile trolley cabinet is available in various specifications as per the client’s requirements. Mobile Laminar Air Flow’s Battery Operated Function to provide the Class 100/ISO 5 Particle Area While moving material from one area to another area.

Mobile Laminar Air Flow can be designed with as-built dimensions or Standard with Airflow as Horizontal as well as vertical as per customer requirement.

Submit your Inquiry

Get Best Quotation in 30 Minutes!

Contents



Technical Specifications

Parameter Specification
Air Flow Horizontal Flow or Vertical Flow (Recirculated / Non Recirculated)
Air Cleanliness Dust counts exceeds Class 100 requirements as per ISO 14644 & IEST-RP-CC001.3
Air Velocity 90 ± 20 FPM at 150 mm from HEPA Filter Face, (0.45 ± 0.05 m/s)
Material Thickness 1 mm / 1.2 mm or In Combination
Surface Finish Matte Finish No. 4
Material Grade SS 304 / SS 316 / SS 316L / In Combination
Construction SS 304 Pipe Structure / Cabinet Construction
Side Walls 5 mm Transparent – Acrylic / Polycarbonate / Stainless Steel SS 304
Front Door 5 mm Hinged Type Transparent – Acrylic / Polycarbonate / Stainless Steel SS 304
HEPA Filter 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply Minipleat HEPA Filter
Pre-Filter 5 Micron, EU5 grade with Efficiency 95% – Washable (For Fresh Air & Recirculation)
Protective Grille Yes for HEPA Filters and Pre Filters
Motor Blower Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Motor Blower
Magnehelic Gauge 0 to 25 MM, To measure differential pressure across HEPA Filter
Speed Variable To adjust the speed of Motor Blower and maintain the required velocity.
Display Two Line Digital Display with ON/OFF Buttons with LED Indication
LED Light Diffused Fluorescent Lighting to provide an intensity of 300 LUX
Alarm System Audio Visual Alarm for Blower Trip
System Protection Password Protected System
Front Door Handle SS 304
DOP/PAO Test Port SS 304 (For HEPA Filter Testing)
Atmospheric Nozzle SS 304
Noise Level Less than 65 DB on scale
Power Supply 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase)
Battery Backup with Inverter 30 to 45 Minutes
Castor Wheels 4″ Dia. wheels total 4 Nos. from that 2 Nos. is Lockable
Documentation DQ, IQ and OQ Documents along with all Necessary Test Certificates



Standard Size of Mobile Laminar Air Flow Unit (MLAF)

Internal Size in Feet
(W X D X H)		 Internal Size in MM
(W X D X H)		 HEPA Filter Size in Feet
(W X D X H)
2 X 2 X 2 610 X 610 X 610 2 Feet X 2 Feet X 3 Inch
3 X 2 X 2 915 X 610 X 610 3 Feet X 2 Feet X 3 Inch
2 X 2 X 3 610 X 610 X 915 3 Feet X 2 Feet X 3 Inch
2 X 2 X 4 610 X 610 X 1220 4 Feet X 2 Feet X 3 Inch
*We also manufacture Mobile Laminar Air Flow Unit (MLAF) size as per customer’s requirement



Warranty and Service Support

We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.



Documentation

  • Design Qualification
  • Installation Qualification
  • Operational Qualification



Certificates

  • M.O.C. Certificate
  • Test Certificate for Controller
  • Other Required Certificates
  • HEPA Filter Test Certificate
  • Pre Filter and Fine Filter Test Certificate
  • Motor Blower Test Certificate
  • Control Panel Test Certificate
  • Differential Pressure Gauge Calibration Certificate



Areas of Application

  • Pharmaceutical Industries
  • Hospitals and Medial
  • Microbiology Laboratories
  • Chemical Research Laboratories
  • Food Processing Industries
  • Electronics Industries
