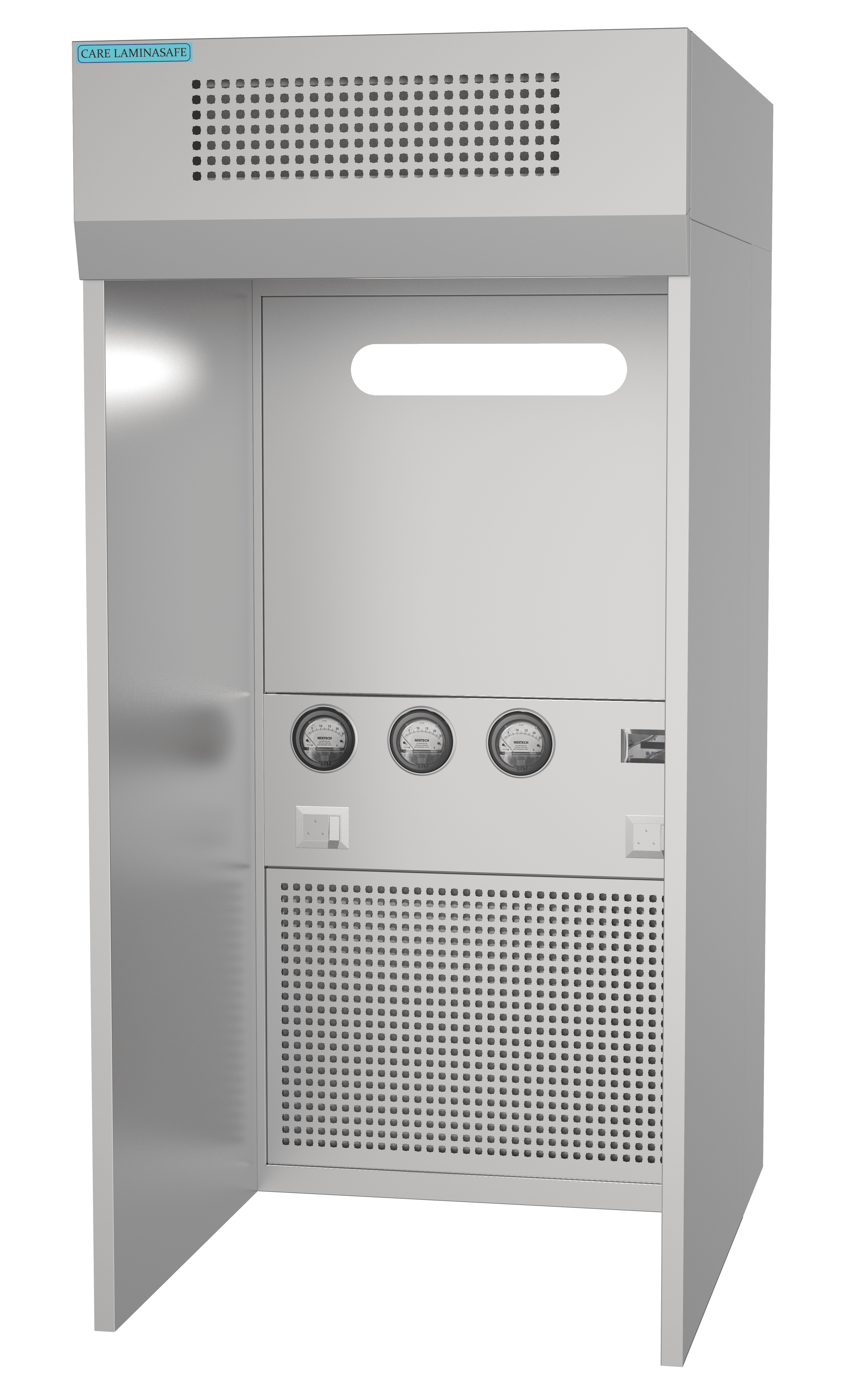

Sampling and Dispensing booth is a kind of laminar flow filtration cabin that is employed in dispensing, sampling, and weighing powders and chemicals in pharma, biotech, and chemical industries. Such units work on the reverse laminar flow working principle and provide protection to operators, products/samples, and the surrounding environment. Dispensing booth is usually made of stainless steel and equipped with three-stage filtration (10µ Pre-filter, 3µ Intermediate, and 0.3µ HEPA Filter) with the help of a motor blower assembly. In order to measure the pressure of the HEPA filter, Differential Pressure gauges are fitted. Pre-filters are washable. It is also known as Reverse Laminar Airflow Unit.
Care Equipment is a Leading Reverse Laminar Air Flow Unit manufacturer in India. We supply to all over India as well as abroad. Our LAF delivers low noise and easy-to-use operation, and rugged construction promises long service life. we make standard and customized RLAF to any customer-provided size. Every Reverse Laminar Air Flow Unit is made to comply with international standards and supplied at industry-leading prices in India.
We make dispensing booths for the pharma industry. Our team carefully designs dispensing booth units according to user-provided specifications and the job is completed with construction in our factory then installation, commissioning and validation at the client site. Also known as sampling booths or weighing booths, these units are made requirements of pharmaceutical and biotech companies in mind. Before dispatch, each unit is tested in-house at various parameters. If you are looking for such units, please email us your query, and we will provide you precise price quotation with all the important details.
Submit your Inquiry
Get Best Quotation in 30 Minutes!
Contents
Technical Specifications
| Parameter | Specification |
| Air Flow | Vertical Down Flow (Recirculated) |
| Air Cleanliness | Dust counts exceeds Class 100 requirements as per ISO 14644 & IEST-RP-CC001.3 |
| Air Velocity | 90 ± 20 FPM at 150 mm From HEPA Filter Face, (0.45 ± 0.05 m/s) |
| Material Thickness | 1 mm / 1.2 mm or In Combination |
| Surface Finish | Matte Finish No. 4 |
| Material Grade | SS 304 / SS 316 / SS 316L / In Combination |
| Construction | Non-FLP (Also FLP if required) |
| Side Walls | 30 mm thick, SS 304 |
| PVC Curtains | At Front side, 2mm X 200 mm width, 30 mm Overlapping |
| Minipleat HEPA Filter | 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply & Exhaust HEPA Filter |
| Fine Filter | 3 Micron, EU7 Grade with Efficiency 90%, – Washable (Second Stage Filtration) |
| Pre-Filter | 5 Micron, EU5 grade with Efficiency 95% – Washable (First Stage Filtration) |
| Protective Grille | Yes for HEPA Filters and Pre Filters |
| Motor Blower | Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Blower |
| Magnehelic Gauge | 0 to 25 MM, To measure differential pressure across HEPA Filter and Pre Filter |
| Speed Variable | To adjust the speed of Motor Blower and maintain the required velocity. |
| Display | Two Line Digital Display with ON/OFF Buttons with LED Indication |
| LED Light | Diffused Fluorescent Lighting to provide an intensity of 300 LUX |
| Alarm System | Audio Visual Alarm for Blower Trip |
| DOP/PAO Test Port | SS 304 (For HEPA Filter Testing) |
| Atmospheric Nozzle | SS 304 |
| Noise Level | Less than 65 DB on scale |
| Power Supply | 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase) |
| Documentation | DQ, IQ and OQ Documents along with all Necessary Test Certificates |
Standard Size of Reverse Laminar Air Flow Unit (RLAF)
| Model Number | Internal Size in MM (W X D X H) |
Internal Size in Feet (W X D X H) |
| RLAF 3.3.6 | 915 X 915 X 1830 | 3 Feet X 3 Feet X 6 Feet |
| RLAF 4.3.6 | 1220 X 915 X 1830 | 4 Feet X 3 Feet X 6 Feet |
| RLAF 4.4.6 | 1220 X 1220 X 1830 | 4 Feet X 4 Feet X 6 Feet |
| RLAF 5.4.6 | 1525 X 1220 X 1830 | 5 Feet X 4 Feet X 6 Feet |
| RLAF 6.4.6 | 1830 X 1220 X 1830 | 6 Feet X 4 Feet X 6 Feet |
| *We also manufacture Reverse Laminar Air Flow Unit (RLAF) size as per customer’s requirement | ||
Warranty and Service Support
We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.
Documentation
- Design Qualification
- Installation Qualification
- Operational Qualification
Certificates
- M.O.C. Certificate
- Test Certificate for Controller
- Other Required Certificates
- HEPA Filter Test Certificate
- Pre Filter and Fine Filter Test Certificate
- Motor Blower Test Certificate
- Control Panel Test Certificate
- Differential Pressure Gauge Calibration Certificate
Areas of Application
- Pharmaceutical Industries
- Hospitals and Medial
- Microbiology Laboratories
- Chemical Research Laboratories
- Food Processing Industries
- Electronics Industries
- Warehouse
