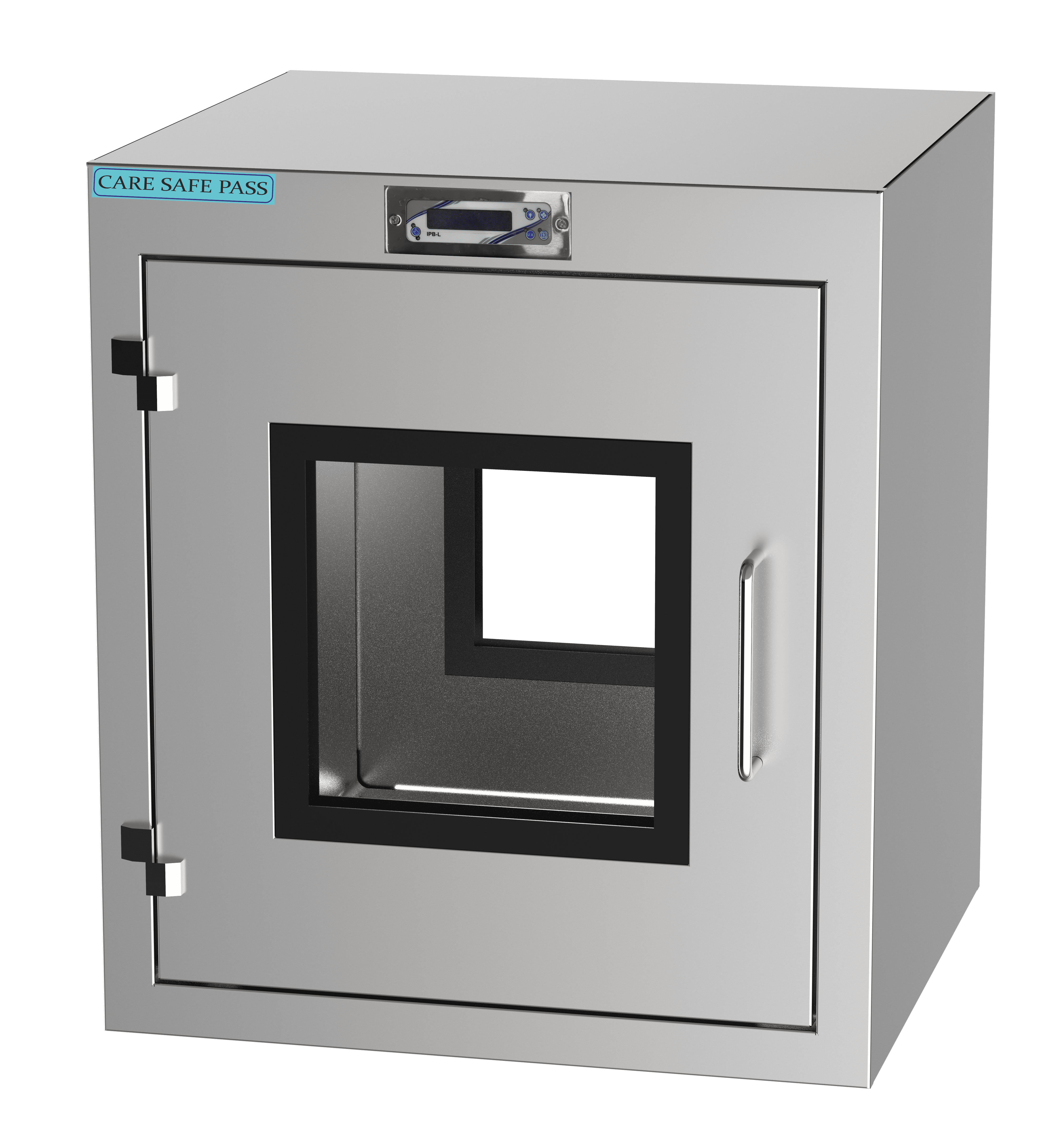

Static Pass box is one of the cleanroom system or equipment, which is used to transfer the material from one side to other side through a controlled environment in order to avoid airborne cross contamination as well as pressure imbalance between two sides. During material transfer, the pass box prevents air from flowing from one location to another. As the name states itself, the primary and only work of a static pass box is to pass material from one side to other without raising contamination concern. Door Interlocking Mechanism is the prime feature of a static pass box, when door at one side is open the door at other side remains closed.
Static pass box is fitted only between two clean room areas having same grade or class and has no air supply or extract. It is also known as passive pass box and equipped with UV light. It is popular with other names such as cleanroom pass through box, hatch box, transfer hatch, clean transfer window and transfer hatch; in addition, it is widely used in microbiology laboratories in food, pharmaceutical, laboratories, life science, electronics and chemical industries.
Care Equipment is a Leading Static Pass Box manufacturer in India. We supply to all over India as well as abroad. Our pass boxes deliver low noise and easy to use operation, rugged construction promises long service life. we make standard and customized pass through boxes to any customer provided size. Every box is made to comply international standards and supplied at industry leading price in India.
Submit your Inquiry
Get Best Quotation in 30 Minutes!
Contents
Technical Specifications
| Parameter | Specification |
| Material | SS 304 / SS 316 / SS 316L / In Combination |
| Material Thickness | 1 mm / 1.2 mm / 1.6 mm |
| Construction | Double Skin Body Construction |
| Surface Finish | Matte Finish |
| Internal Coving | Pencil Coving in Internal Working Area for Easy Cleaning |
| Display | Two Line Digital Display with ON/OFF Buttons with LED Indication |
| Controller | Electromagnetic Door Interlocking (Allows to open one door at a time) |
| LED Light | Diffused Fluorescent Lighting to provide an intensity of 300 LUX |
| UV Light | 8W-11W, Make : Philips or Equivalent |
| Hour Meter | UV Burning Hour Meter (Inbuilt in Controller) or External |
| Alarm System | Door Open / Close Delay Audio Visual Alarm |
| System Protection | Password Protected System |
| Door Type | SS Sandwich Door with View Panel |
| View Panel | Double Side 4 mm Toughened Glass |
| Door Handle & Hinges | SS 304 |
| Noise Level | Less than 65 db on scale |
| Power Supply | 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase) |
| Documentation | DQ, IQ and OQ Documents along with all Necessary Test Certificates |
| Warranty | 1 Year manufacturing warranty from the date of dispatch |
Standard Size of Static Pass Box
| Model Number | Internal Size in MM (W X D X H) |
Internal Size in Feet (W X D X H) |
| SPB-450 | 450 X 450 X 450 mm | 1.5 X 1.5 X 1.5 Feet |
| SPB-600 | 600 X 600 X 600 mm | 2 X 2 X 2 Feet |
| SPB-750 | 750 X 750 X 750 mm | 2.5 X 2.5 X 2.5 Feet |
| SPB-900 | 900 X 900 X 900 mm | 3 X 3 X 3 Feet |
| *We also manufacture static pass box size as per customer’s requirement | ||
Warranty and Service Support
We provide 1 year manufacturing warranty from the date of dispatch, We believe in best of the quality and after-sales service support.
Key Features and Specifications
- Design according to GMP Guidelines
- Easy to Clean and to disinfect
- ISO 14644-3:2018 Compliance
- Electromagnetic Door Interlocking System
- No Sharp Edges
- Pencil Coving for Internal Working Area
- Sturdy Built Doubled Skin Body
- Advanced airtightness
- Easy Integration
- Less than 65 dB Sound Level on scale
- Minimum Vibration Level
- MOC as SS 304, SS 316 or SS 316L
- Feather Touch Display Each Side
- Fluorescent Illumination LED Light
- UV Light for Disinfection
- Process Lock Timer (Inbuilt)
- Door Open/Close Delay Alarm (Inbuilt)
- UV Hour Meter (Inbuilt)
- SS 304 Door Hinges and Door Handles
- 30 MM Double Skin Doors with View Panel
- 5 MM Toughened Glass as View Panel
- Power Supply 220-240V, 50 Hz, Single Phase
Optional Features & Accessories
- Flame Proof Design & Construction
- Three Way Static Pass Box
- L Type Construction
- Support Stand for Pass Box Mounting
- UV Hour Meter (External)
- Digital Differential Pressure Gauge with Alarm Hour Meter
- Extra UV Light and Fluorescent LED Light
Mounting Arrangements
- Wall Mounting
- Stand Mounting
- Floor Mounting
Documentation
- Design Qualification
- Installation Qualification
- Operational Qualification
Certificates
- M.O.C. Certificate
- Test Certificate for Controller
- Other Required Certificates
Areas of Application
- Pharmaceutical Industries
- Hospitals and Medial
- Microbiology Laboratories
- Chemical Research Laboratories
- Food Processing Industries
- Electronics Industries
